20m -   5L/5L (48 ft booms) at 60/120 feet

40m -   2L Moxon on 29 foot boom at 136 feet
            2L Phased vertical Array

60m -   1/4 wave vertical (100 radials)
            1/4 sloper with (100 radials)

80m -   4 square with 100 radials under each vertical

160m - 125 foot Rohn 25 tower as vertical +200 radials

RCV antennas: Hi-Z 8 circle array
                      580 foot beverages in 6 directions
Icom 7600 x2
Icom 9700
Alpha 87A x 2
AL-1500 (converted to 6M)  1500 watts ++

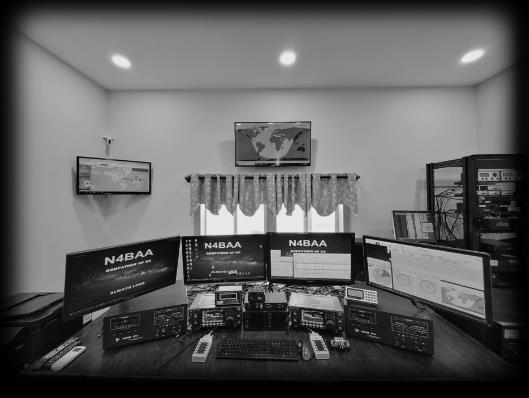

Full SO2R contesting setup

Antennas

6m -     10 element on 52 foot boom at 56 feet

10m -    6L/6L/6L (32 ft booms) at 37/71/101 feet

15m -     5L/5L (36 ft booms) at 45/90 feet
Station DX Stats About Me CQ WAZ Hi Jose
Next tower to go up is a 105 foot Rotating Tower. This tower will support:

5L12 / 5L17 @ 105 feet

3L30 Full Size Elements @ 93 feet

6L10 @ 75 feet

4L20 @ 50 feet

10L6 two high stack (52 foot boom) at 33/62 feet
